Blackrock Quarry Fire Ranges and Technical Training Centre photograph. 1 of 14.

Blackrock Quarry Fire Ranges and Technical Training Centre photograph

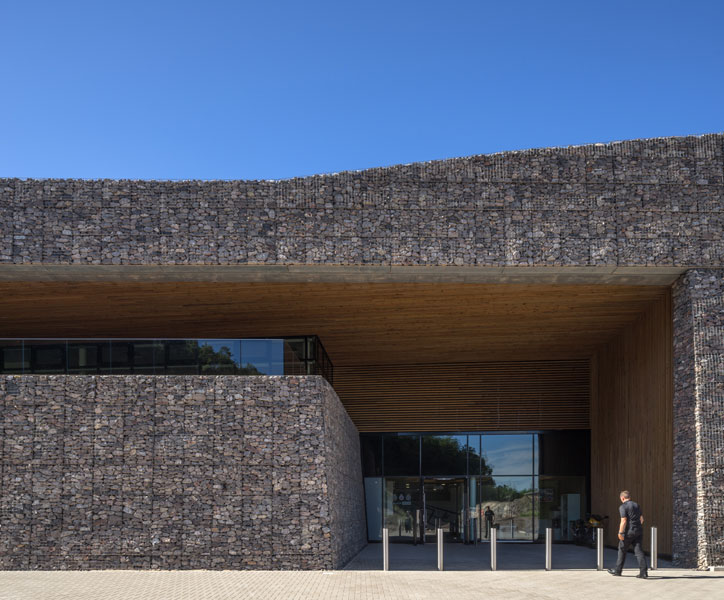

Entrance photograph with Gabion Wall and Timber soffit. 2 of 14.

Entrance photograph with Gabion Wall and Timber soffit

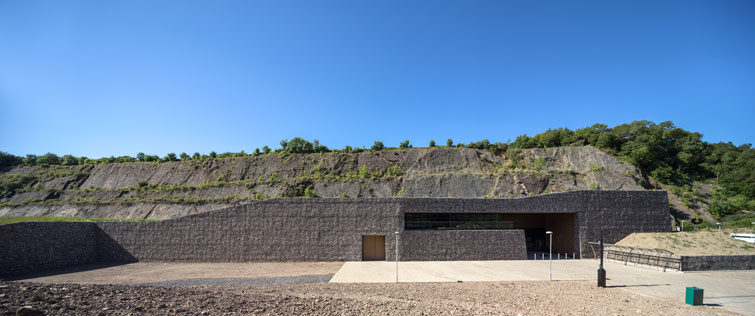

Main facade elevation photograph. 3 of 14.

Main facade elevation photograph.

Solar panelling. 4 of 14.

Solar panelling

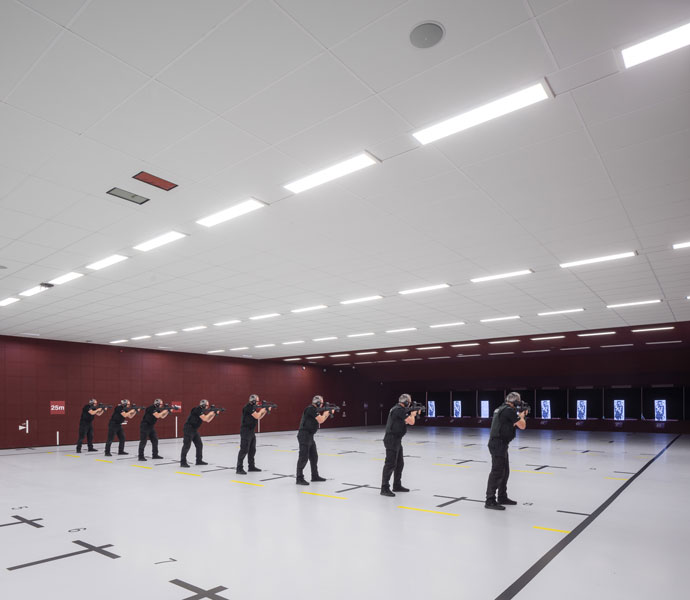

London interiors photographer. 5 of 14.

London interiors photographer

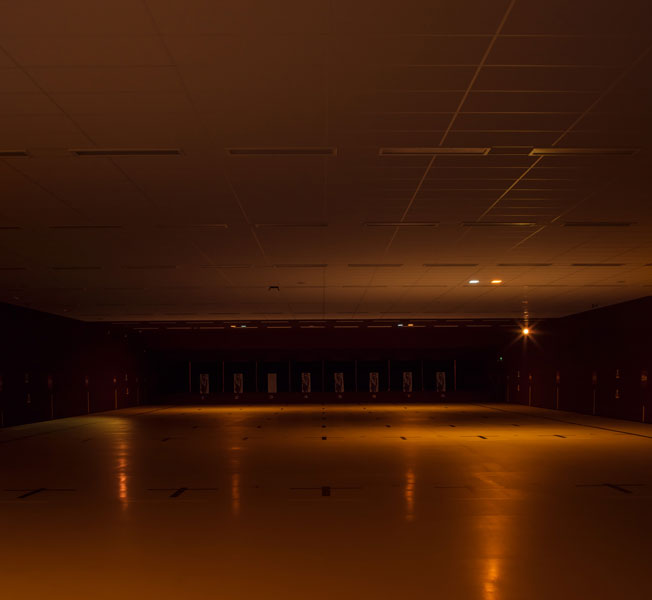

Internal lighting simulation. 6 of 14.

Internal lighting simulation

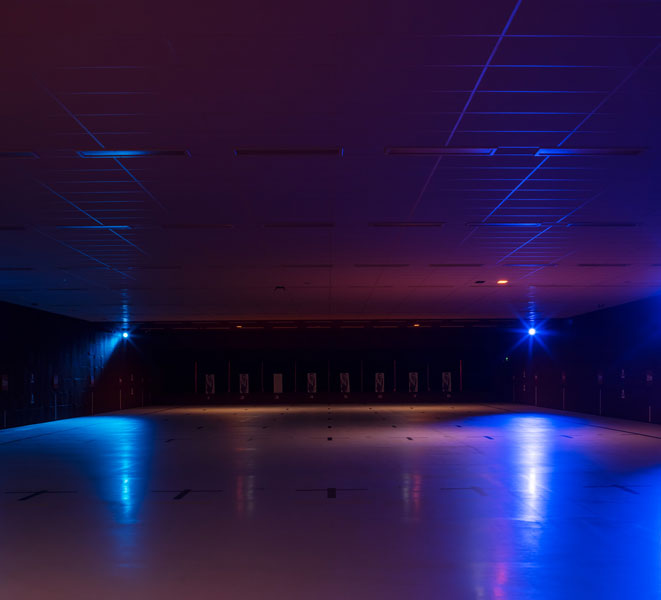

Fluorescent illumination of practice area. 7 of 14.

Fluorescent illumination of practice area

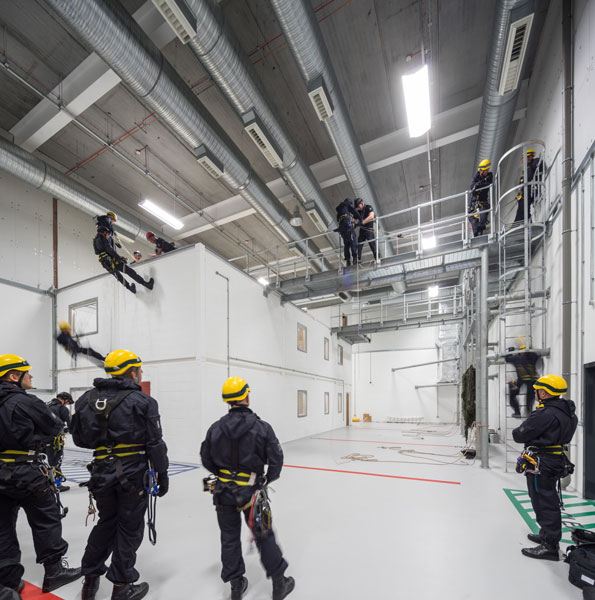

Recreation activity spaces. 8 of 14.

Recreation activity spaces

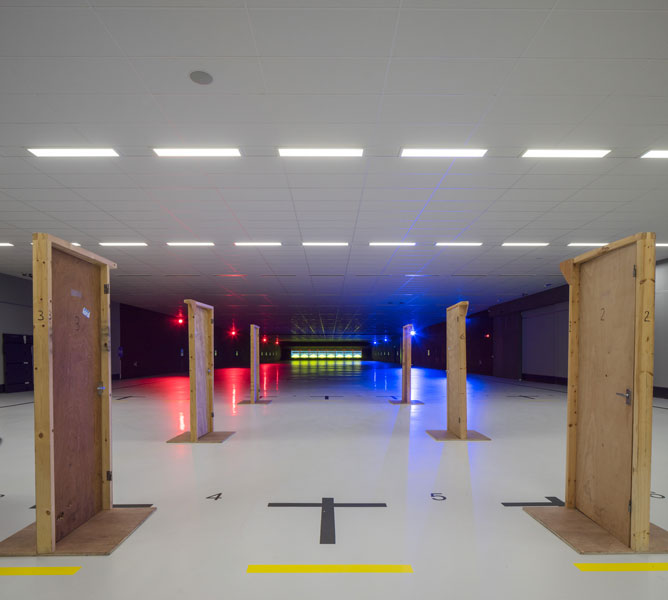

Interior multi purpose stage with false doors. 9 of 14.

Interior multi purpose stage with false doors

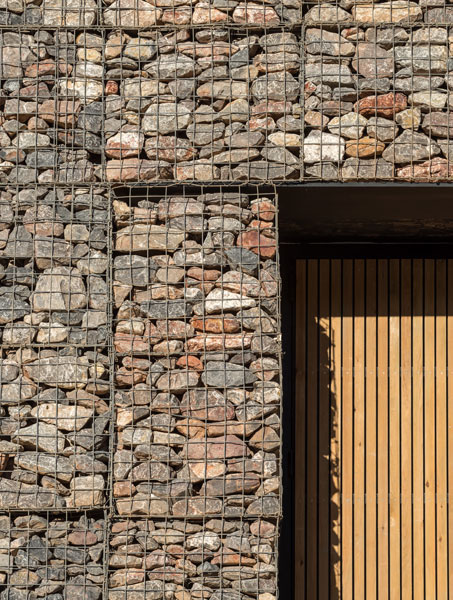

Gabion wall architectural detail photography. 10 of 14.

Gabion wall architectural detail photography

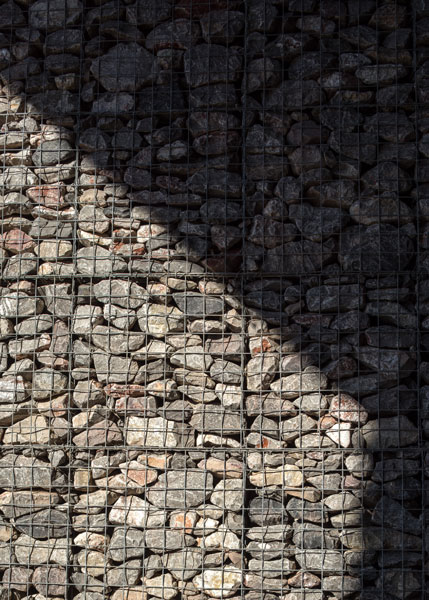

Stone and shadow architectural detail photograph. 11 of 14.

Stone and shadow architectural detail photograph

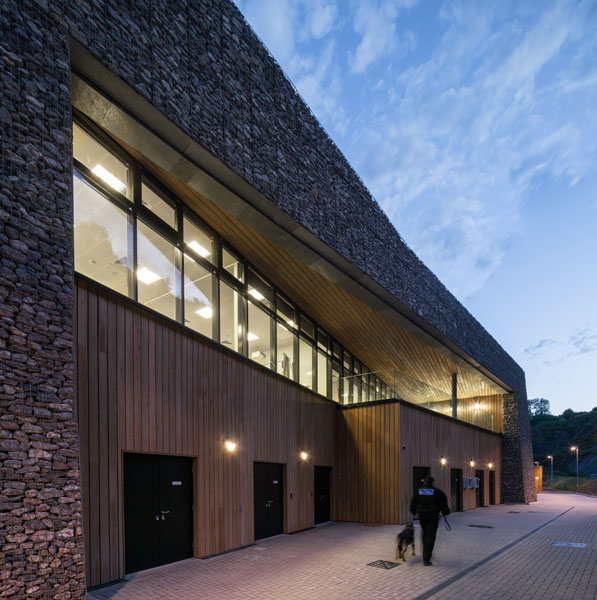

Haverstock Associates, training facility night photograph. 12 of 14.

Haverstock Associates, training facility night photograph

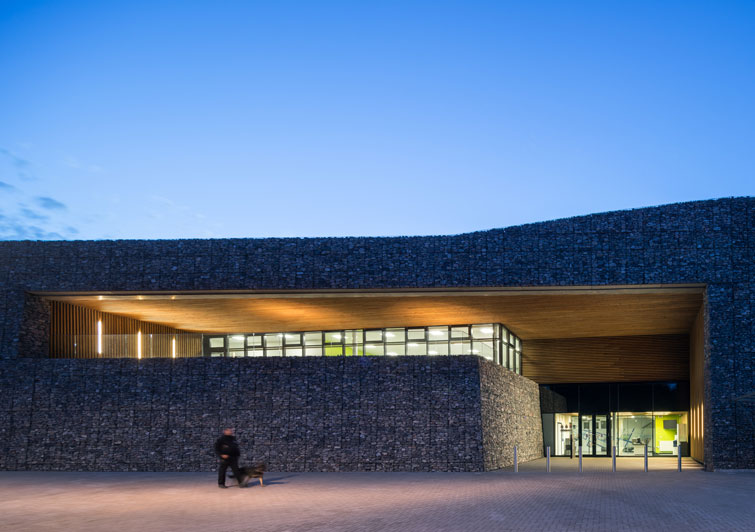

London Architectural Photographer. 13 of 14.

London Architectural Photographer

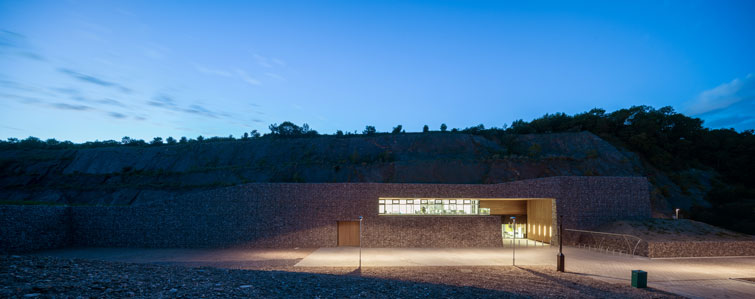

Hillside context showing floodlights photographed at dusk, Bristol. 14 of 14.

Hillside context showing floodlights photographed at dusk, Bristol

BLACKROCK QUARRY TRAINING CENTRE, Avon & Somerset, UK, 2016, Haverstock Associates
Architectural photography of the Blackrock Quarry training centre.

A new training centre for Avon and Somerset Police in Bristol, the building contains highly specialist spaces, such as two fire ranges and tactical training facilities, plus offices and classrooms. The 5,800 sq.m police training facility blends seamlessly into the base of a disused quarry and is perceiving as an integrated part of the landscape. The brief was made even more challenging due to the site having significant habitat issues. The presence of nesting Peregrine falcons meant that the design and construction had to be phased around the nesting season to avoid disturbance.

The building emerges echoing the geometry of the quarry workings. To further blend with the quarry walls, the exposed elevations of the building are faced in hand-filled angled stone gabions. The building is covered with a bio-diverse roof that over time merges building with the adjacent rugged landscape. Underneath, a structural solution provides the necessary ballistic protection as well as acoustic insulation to protect the local wildlife. Haverstock developed the specialist facilities in close consultation with numerous departments of the Avon & Somerset Police force - from the management team to the day-to-day end users, in order to ensure that the building met their very specific needs and wishes.

Due to the very specific Home Office requirements, some very challenging issues such as the large ventilation demands of firing ranges were presented to Haverstock. As a result, the slatted timber soffit over the entrance also serves as a large plenum, drawing air into the plant room adjacent and then down into the ranges. The training facilities are designed to be simple, practical, safe, secure and robust whilst the front of house and admin spaces have richer palette of materials and a more refined aesthetic. (All images copyright Simon Kennedy, London Architectural Photographer)
